| Allgemein |
|
| Produkttyp |
Tower-Desktop-PC (AI PC) |
| Modell |

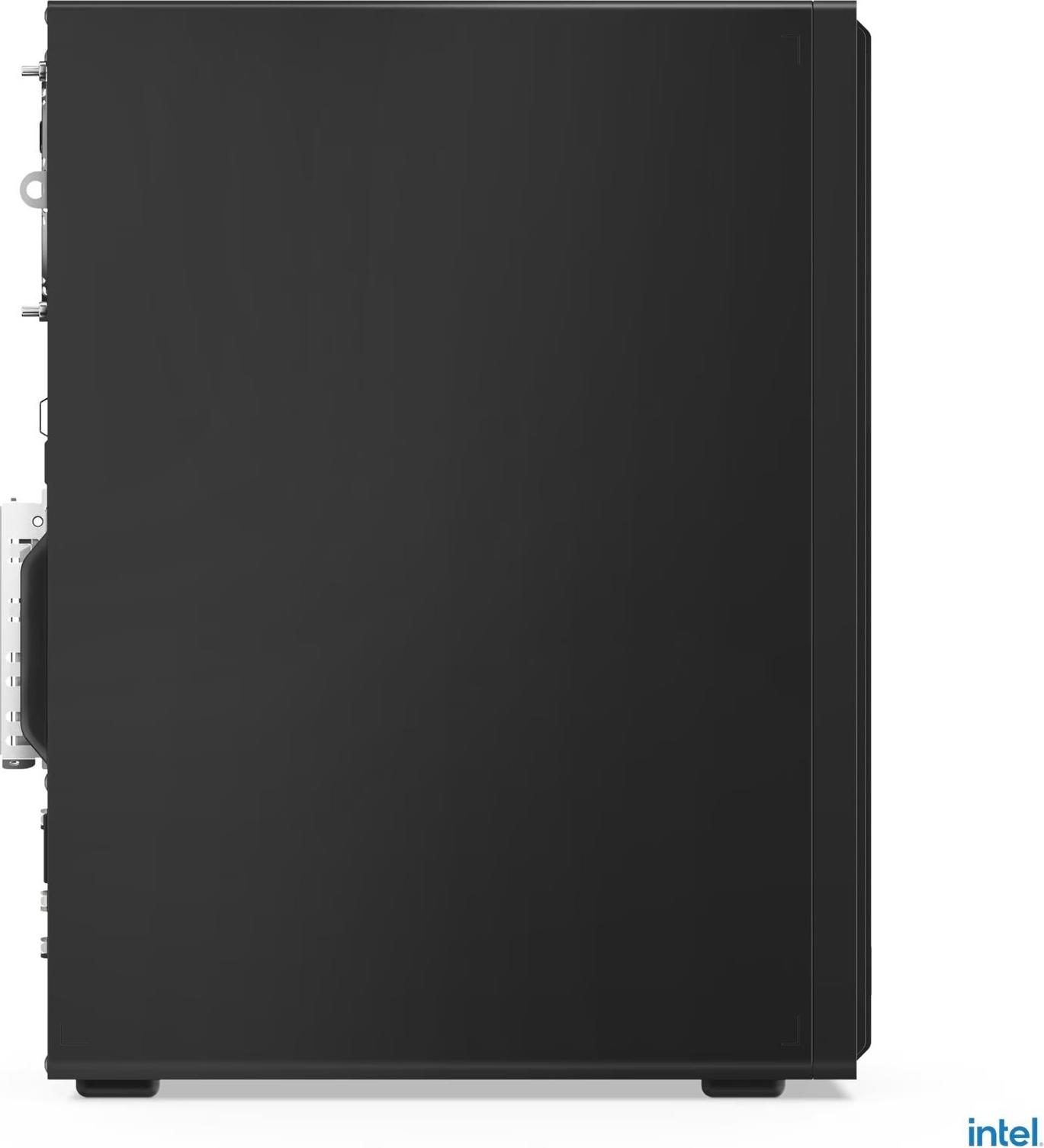

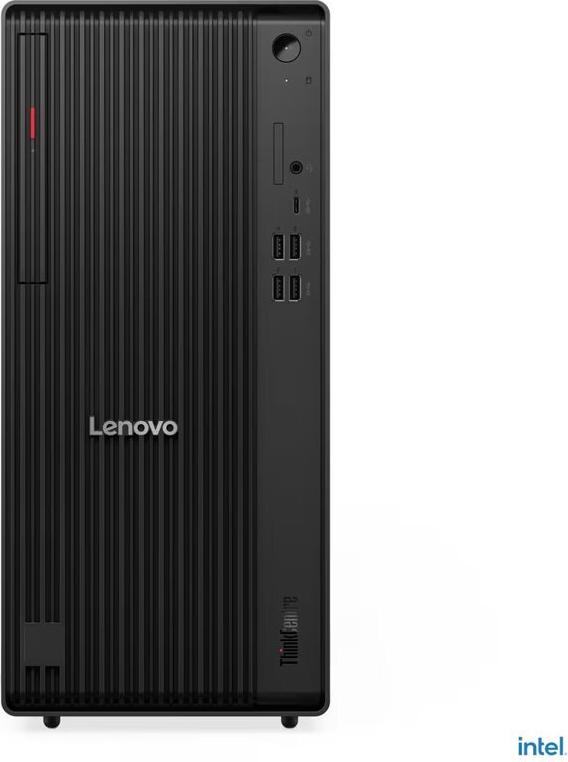

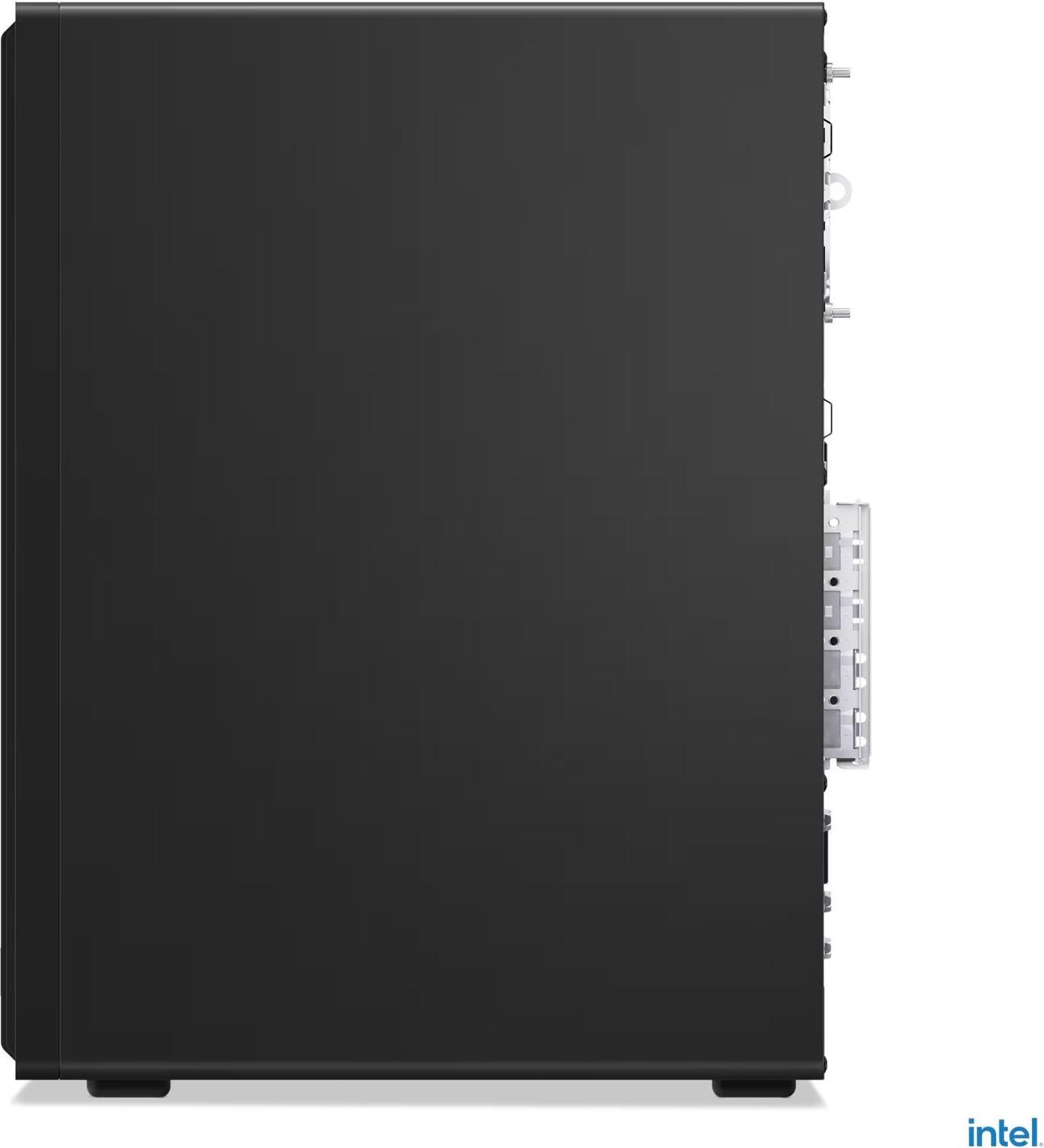

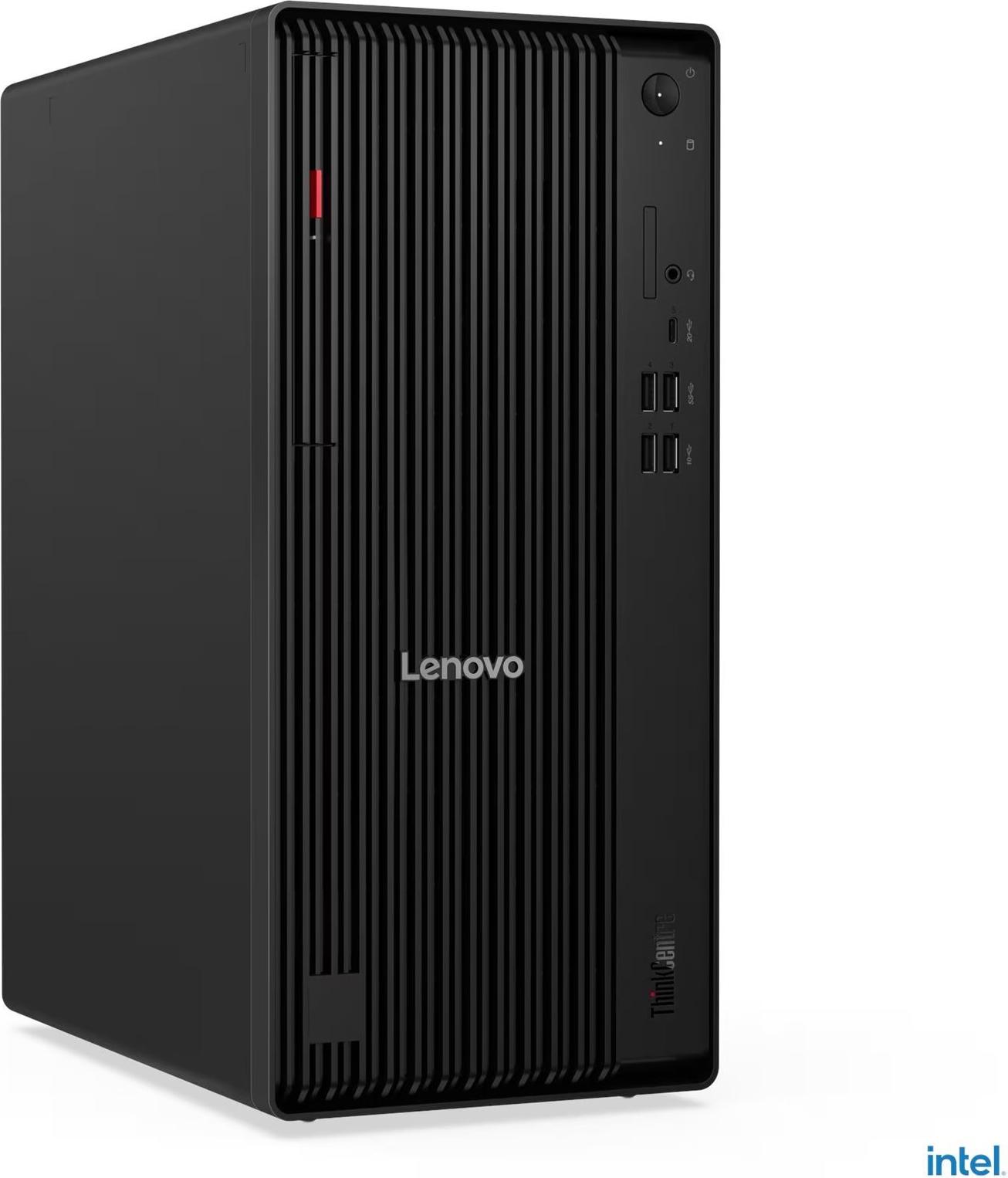

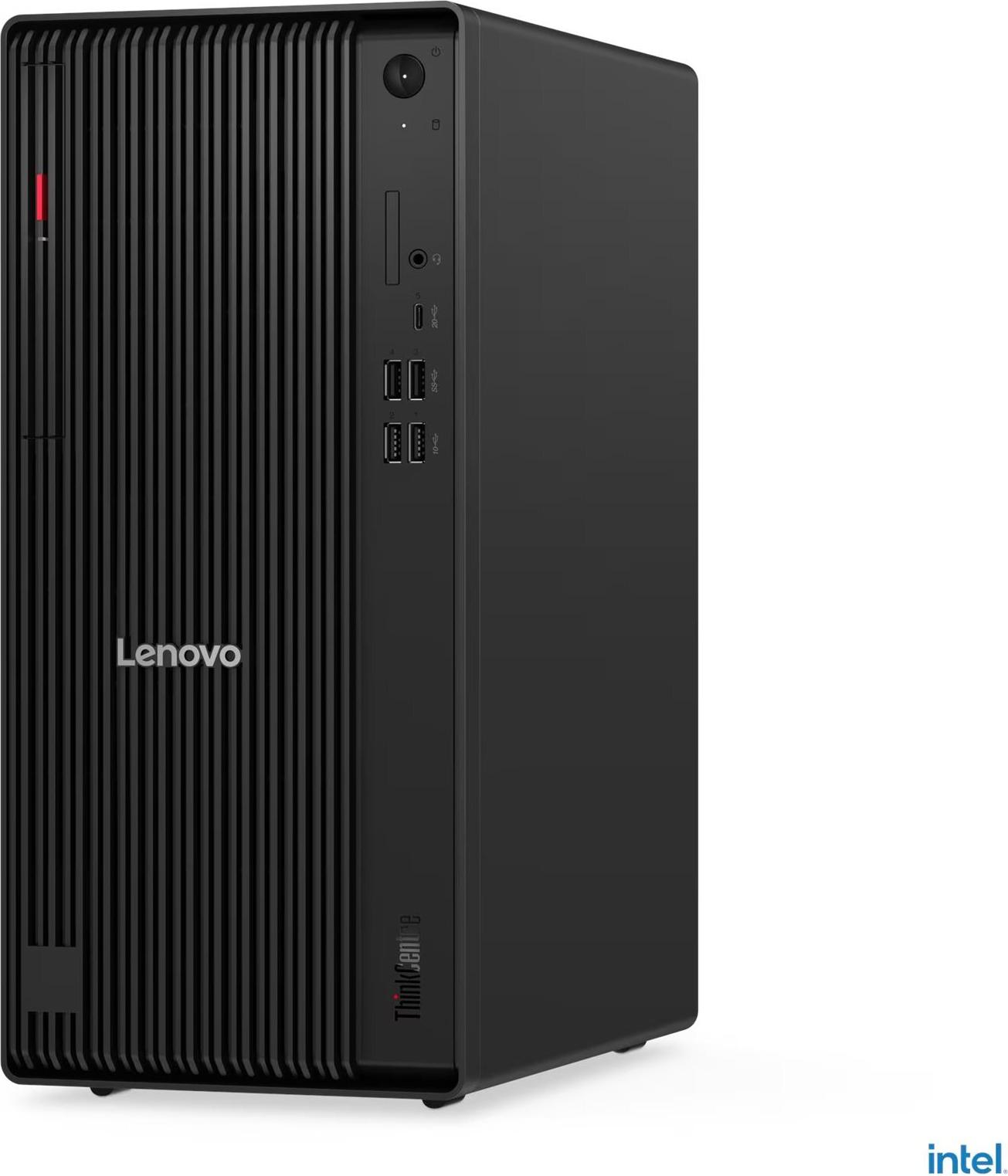

ThinkCentre M90t Gen 6 |
| Farbe |
Schwarz |
| Abmessungen (Breite x Tiefe x Höhe) |
17 cm x 29,8 cm x 37,6 cm |
| Gewicht |
6,5 kg |
|
|
| Prozessor |
|
| Prozessor |
Intel Core Ultra 7 265 (Serie 2), 20 Kerne, bis 5,3 GHz |
| Cache |
30 MB |
| Chipsatz |
Intel Q870 |
| NPU |
Intel AI Boost, bis 13 TOPS (INT8) |
| Plattform |
Intel vPro Enterprise |
|
|
| Arbeitsspeicher |
|
| RAM |
32 GB DDR5 SDRAM (5600 MT/s), max. 128 GB |
| Steckplätze |
3 (2 frei) DIMM 288-PIN |
|
|
| Speicher |
|
| SSD |
512 GB PCIe 4.0 x4 NVMe M.2 2280, TCG Opal Encryption 2 |
| Erweiterungsslots |
3.5" intern (2 frei), 2.5" intern (1 frei) |
| Optisches Laufwerk |
Keines |
|
|
| Grafik |
|
| Grafikkarte |
Intel Graphics (UMA), bis 8 TOPS |
|
|
| Netzwerk & Kabellos |
|
| WLAN |
Intel Wi-Fi 7 BE200 (802.11a/b/g/n/ac/ax/be) |
| Bluetooth |
5.4 |
| Ethernet |
1GbE RJ-45 |
|
|

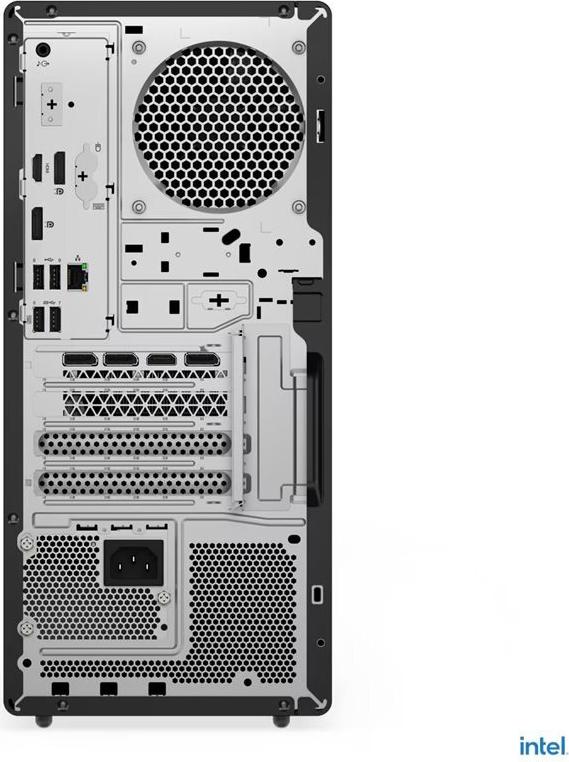

| Anschlüsse |
|
| USB |
1x USB-C 3.2 Gen 2x2 (15W), 4x USB 3.2 Gen 1, 2x USB 3.2 Gen 2, 2x USB 2.0 |
| Video |
1x HDMI, 2x DisplayPort 1.4a |
| Audio |
1x Kopfhörer/Mikrofon-Kombi, 1x Line-Out |
| Weitere |
LAN |
|
|
| Audio |
|
| Lautsprecher |
Integriert |
|
|
| Stromversorgung |
|
| Netzteil |
500 Watt, 92% Effizienz, AC 100-240 V (50/60 Hz) |
| Zertifizierungen |
CE, RoHS |
|
|
| Betriebssystem |
|
| OS |
Windows 11 Pro (Deutsch) |
|
|
| Erweiterung |
|
| PCIe-Slots |
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 3x M.2 |
| M.2-Slots |
3 (2 frei) für SSD |
|
|
| Sicherheit |
|
| Sicherheitsfeatures |
Discrete TPM 2.0, Kensington Lock-Slot, Gehäuse-Alarmschalter |
| Zertifizierungen |
FIPS 140-2, MIL-STD 810H, TCG Certified |
|
|
| Umwelt & Effizienz |
|
| Energieeffizienz |
ENERGY STAR 9.0 |
| Umweltsiegel |
EPEAT Gold, TCO Generation 10, GREENGUARD |
